Country Origin : Germany, China, India

Product Description :

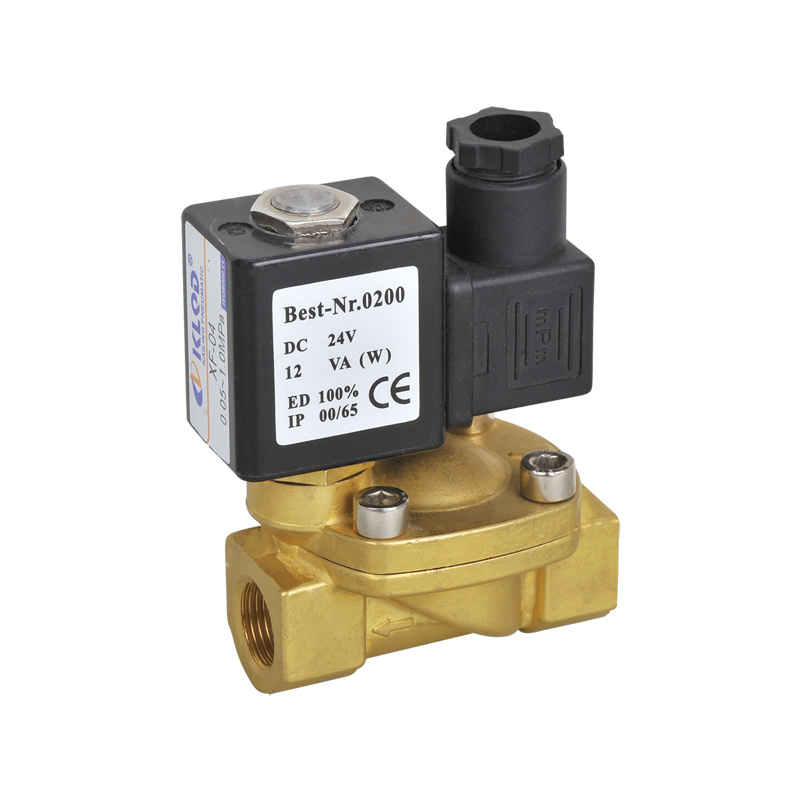

We are a unique entity in the industry, actively committed towards providing a qualitative range of Electric Air Water Solenoid Valve.

Product Specification :

Brand : Wic Valve
Size : 1/4 to 4 Inch
Material : Brass
Color : Black and Golden
Power : 30W
Seal Material : NBR (Buna N) Diaphragm & Plunger Tip
Armature Tube Material : Stainless Steel
Coil Class : H Class IP 65
Coil Duty : 100% ED (Continuous Duty)
Operating Pressure : Vacuum to 150 PSI with AC Coil; Vacuum to 100 PSI with DC Coil
Operating Temperature : 10 to 80 Deg C
Port Size : 1-1/2" Inch NPT Female Port
Coil Voltage Option : 24V DC
Valve Type : 2 Way Normally Closed (Valve opens with energized)
Service Media : Air, Gas, Liquid, Vacuum, Water
Operation Model : Direct Lift Diaphragm
Flow Model : Uni-Directional
Features:
1. Optimum strength
2. Less maintenance
3. Easy installation
